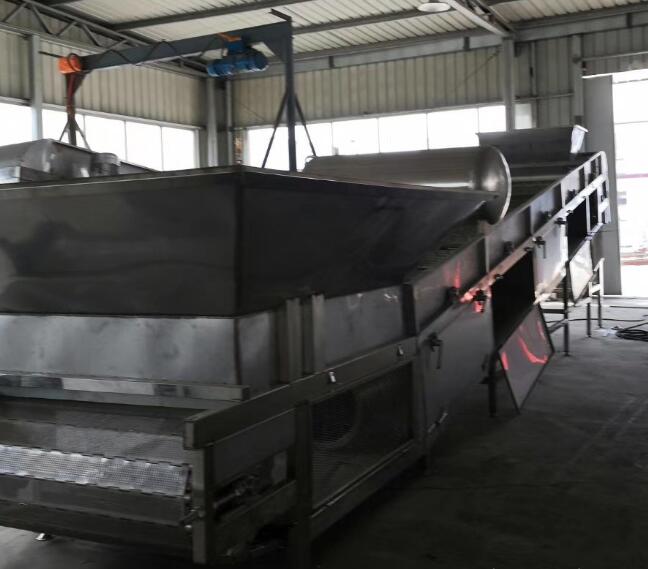

新型自動涼茬機是將攤晾、加漿、加曲、攪拌、卸料等工序一次性完成，與傳統工藝相比，大大降低勞動強度，實現機械自動化。本機裝有多個軸流風機，通過風量的調節，使高溫涼茬在輸送過程中降到規定的溫度，攤晾效果好，在攤晾過程中設置多個攪拌裝置，使涼茬在攤晾過程中松散、不易結坨，加漿、下曲均勻，數量可調節，通過裝置可將漿水、曲粉、糧茬攪拌均勻。
The new type of automatic stubble cooler completes the processes of air spreading, slurry adding, starter adding, stirring and unloading at one time. Compared with the traditional process, it greatly reduces the labor intensity and realizes the mechanical automation. The machine is equipped with several axial-flow fans. Through the adjustment of air flow, the high-temperature cold stubble can be lowered to the prescribed temperature in the process of conveying, and the spreading effect is good. In the spreading process, several mixing devices are set up to make the cold stubble loose, not easy to set up, the pulping and downwarping are even, and the quantity can be adjusted. Through the device, the slurry, starter and stubble can be stirred evenly.
新型自動涼茬機的結構組成
Structure Composition of New Type Automatic Stubble Cooler
1.主要由機架、風機、傳送帶和依次連接于傳送帶上的攪籠、打料棍、翻料棍、下料裝置、出料管組成.
1. It is mainly composed of frame, fan, conveyor belt and agitator, beating rod, turning rod, discharging device and discharging pipe connected to conveyor belt in turn.
2.風機固定在傳送帶側端的機架上并少設置為三臺，所述的下料裝置由下料斗和固接于下料斗下部的下料輥組成，所述的機架上設有高于傳送帶輸送線兩邊的擋板。
2. The fan is fixed on the frame at the side end of the conveyor belt and is provided with at least three sets. The discharging device is composed of a discharging hopper and a discharging roller fixed to the lower part of the discharging hopper. The frame is provided with a baffle higher than the two sides of the conveyor belt conveyor line.
3.使用時，酒茬在傳送帶上通過，在打碎和攪拌的同時風機工作，迅速降溫，冷卻后的酒茬在下料裝置中與酒曲自動混合均勻。
3. When used, the stubble passes through the conveyor belt, and the fan works at the same time of smashing and stirring, which can quickly cool down. The cooled stubble is automatically mixed evenly with the koji in the feeding device.
4.實用新型全自動打茬機提高了冷卻效果、降低了功耗，了現有設備自積堵塞現象，并實現了酒茬和酒曲的自動混合。
4. The utility model fully automatic stubble beater improves the cooling effect, reduces power consumption, solves the self-blocking phenomenon of existing equipment, and realizes the automatic mixing of stubble and koji.
不銹鋼打涼茬機包括機架，機架的上料端與加料結構連接、出料端與出料結構連接，上料端設有一帶輪，出料端設有第二帶輪，打涼茬機價錢，一帶輪與二帶輪通過輸送帶連接，第二帶輪通過減速機與驅動電機連接，打涼茬機，驅動電機與機架連接，第二帶輪位置高于一帶輪位置，在輸送帶靠近出料端一側的機架上設有支撐架，在支撐架上設有水箱，水箱下部設有噴管，所述噴管軸線與輸送帶平行設置，打涼茬機，水箱通過出水管道與噴管連接，出水管道上設有水開關閥門，噴管上設有噴頭，水箱內加注常溫水。采用常溫水噴灑在茬料上以滿足茬料的濕度要求、節約能源，淀粉得到充分地糊化，有利于后續發酵工藝的進行，提高了淀粉利用率和出酒率，提高經濟效益。
Stainless steel stubble cooler includes rack, the upper end of rack is connected with feeding structure, the outlet end is connected with discharging structure, the upper end is connected with a belt wheel, the outlet end is equipped with a second belt wheel, the price of stubble cooler, one belt wheel is connected with two belt wheels through conveyor belt, the second belt wheel is connected with drive motor, the price of stubble cooler, the driving motor is connected with rack, and the second belt wheel is connected with conveyor belt wheel. The position is higher than that of a belt wheel. A support frame is arranged on the frame near the discharge end of the conveyor belt, a water tank is arranged on the support frame, and a nozzle is arranged on the lower part of the water tank. The axis of the nozzle is parallel to the conveyor belt. The water tank is connected with the nozzle through the outlet pipe. A water switch valve is arranged on the outlet pipe, a nozzle is arranged on the nozzle, and normal temperature water is injected into the water tank. Spraying normal temperature water on stubble to meet the humidity requirement of stubble, save energy, and make starch gelatinized sufficiently, which is conducive to the subsequent fermentation process, improve starch utilization rate and liquor yield, and improve economic benefits.
不銹鋼涼茬機，其特征是：由機架、風機、傳送帶和依次連接于傳送帶上的攪籠、打料輥、翻料輥、下料裝置、出料管組成，所述的風機固定在傳送帶側端的機架上并少設置為三臺，所述的下料裝置由下料斗和固接于下料斗下部的下料輥組成，所述的機架上設有高于傳送帶輸送線兩邊的擋板。
The stainless steel stubble cooler is characterized by a frame, a fan, a conveyor belt, a stirring cage, a feeding roll, a turning roll, a feeding device and a discharging pipe connected sequentially to the conveyor belt. The fan is fixed on the frame at the side end of the conveyor belt and at least three sets are arranged. The feeding device is composed of a feeding hopper and a discharging roll fixed to the lower part of the feeding hopper. It is higher than the baffles on both sides of the conveyor belt.
